NEW TOPCON GTS-1002, 2” 400m PRISMLESS RANGE TOTAL STATION USA STOCK 1Y WARRANTY

Product Categories

Shanghai Magcach Technology Co.Ltd

Contact Now

Name: NEW TOPCON GTS1002 2 400m PRISMLESS RANGE TOTAL STATION USA STOCK 1Y WARRANTY
Brand: Topcon
Price: 1 USD

Brand Name : Topcon

Model Number : GTS1002

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000 per year

Delivery Time : 1-2 weeks after the goods are paid

Packaging Details : With Standard Export Shipping Way

None Prism Distance : 350m

Accuracy : 2"

Contact Now

NEW TOPCON GTS-1002, 2” 400m PRISMLESS RANGE TOTAL STATION USA STOCK 1Y WARRANTY

NEW TOPCON GTS-1002, 2” 400m PRISMLESS RANGE TOTAL STATION USA STOCK 1Y WARRANTY

Model		GTS-1002
Telescope
Magnification/Resolving power		30X/2.5"
		Length: 150mm, Objective aperture: 45mm (EDM:48mm),
Other		Image: Erect, Field of view: 1°30' (26m/1,000m),
		Minimum focus: 1.3m
Angle measurement
Display resolutions		1"/5"
Accuracy (ISO 17123-3:2001)		2''
Method		Absolute
Compensator		Dual-axis liquid tilt sensor, working range: ±6′
Distance measurement
Laser output level		Non prism:	3R Prism/ Reflector 1
Measuring range
(under average conditions *1 )
	Reflectorless	0.3 ~ 350m
		RS90N-K:1.3 ~ 500m
	Reflector	RS50N-K:1.3 ~ 300m
		RS10N-K:1.3 ~ 100m
	Mini prism	1.3 ~ 500m
	One prism	1.3 ~ 4,000m/ under average conditions *1 : 1.3 ~ 5,000m
Accuracy	Reflectorless	(3+2ppm×D)mm
	Reflector	(3+2ppm×D)mm
	Prism	(2+2ppm×D)mm
Measurement time		Fine: 1mm: 0.9s Coarse: 0.7s, Tracking: 0.3s
Interface and Data management
Display/keyboard		Adjustable contrast, backlit LCD graphic display /
		With backlit 25 key (alphanumeric keyboard)
Control panel location		On both faces
Data storage
	Internal memory	10,000pts.
	External memory	USB flash drives (maximum 8GB)
Interface		RS-232C; USB2.0
General
laser Designator		Coaxial red laser
Levels	Circular level	±6′
	Plate level	10′ /2mm
Optical plummet telescope		Magnification: 3x, Focusing range: 0.3m to infinity,
Dust and water protection		IP66
Operating temperature		-20 ~ +60℃
Size		191mm(W)×181mm(L)×348mm(H)
Weight		5.6kg
Power supply
Battery		BT-L2 lithium battery
Working time		25 hours

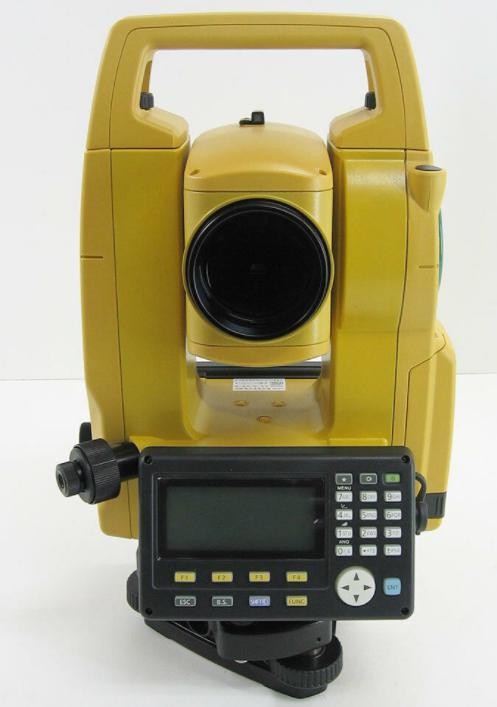

NEW TOPCON GTS-1002, 2” 400m PRISMLESS RANGE TOTAL STATION USA STOCK 1Y WARRANTY Images
